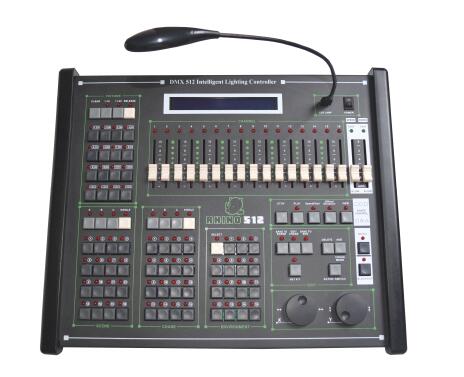

• DMX 512 controller
    (F-1325 512 channels DMX controller)

    Technical Feature

    * DMX 512/1990 Standard, 512 DMX control channels

    * 4 output with optical isolated , with stand 2000 Vrmms

    * Up to 50 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8, etc

    * Up to 32 scanners may be connected with a maximum of 16 channels each

    * A large backlight LCD to display operation parameters

    * 16 sliders for channel, 1 slider for speed/fade control

    * 1600 chase steps, 48 chases, up to 99 steps each. Each step contains its speed and cross time, can be set respectively. Trigger mode selectable: Music synchronously and manual speed

    * SPEED fade time range is 0.01s-25.5s and CROSS fade time range is 0s-25.5s and the total time amount of current status will be program step time.

    * 48 scanner scenes can be used directly

    * 8 chases, 48 scenes operated at the same time. At most 32 scanners can be selected

    * The X/Y channels of different scanners can be controlled by modulation wheel

    * 16Bit control for absolutely precise movement

    * 15 environment programsto output the combination , which are composed of different scenes , chases and manual output quickly

    * The music trigger source can be selected between audio line input or inside microphone

    * Easy to edit and handle

    * The Data auto-saves

    * High performance switching power supply, with extremely low power harmonious distortion and wide range of voltage, suit for the requirement of different country simultaneously

    * LED lamp connector

    * Power input: DC9V 1000mA

    * Dimension: 498mm × 420mm × 115mm

    * Net Weight: 6.3kg

    New Function

       Running time and Cross time could be changed freely during program running period by moving SPEED & CROSS sliders or run as preset time directly if SPEED & CROSS sliders be put at AUTO position

       Cross time of all channels mode or X/Y channel only mode could be switch easily during program running period

       After assign X/Y wheel, sliders and X/Y wheel could be used to change DMX value of each channel together ( Sliders for fast change and X/Y wheel for fine adjustment)
