Technical feature

* DMX512/1990 Standard

* 512 channels

* LCD display with backlight

* Up to 32 scanners may be connected with a maximum of 16 channels each

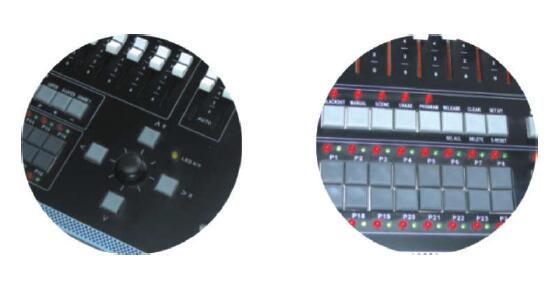

* Assignable joystick for easy of movement, four keys fine adjustment

* Manual operate enable 8 chases and 32scenes can be run at the same time

* 32 chases (at most 120 steps for each chase)

* 3840 chase steps

* Range of cross time: 0S-25.5S

* Range of speed time: 0.1S-25.5S

*   Each chase speed and cross time can be saved automatic

* The music trigger source can be selected between audio line input or inbuilt microphone

* Auto save last running data when power off or disconnect electric suddenly. Console will auto

run continue while power ON or connect to electric

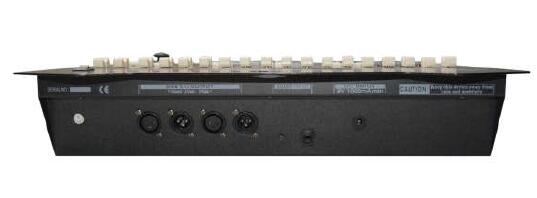

* DMX signal output connector: XLR-D3F X4

* Power supply: DC9V 1000mA

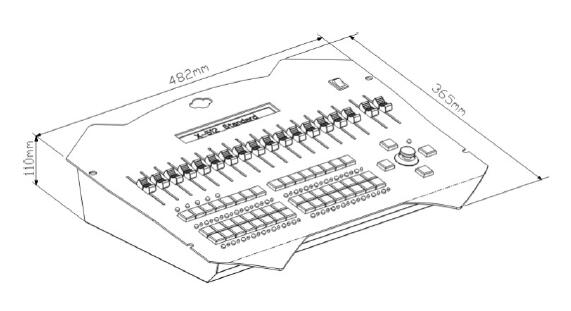

* Dimension: 482mm×365mm×110mm

* Net Weight: 4.7Kg
