Advantaged Feature

* Multiple Installation Methods 6DX DMX distributor

* High Voltage Protection

* Independent input and output signal (include earth cable of signal)

* Neutrik 3pins XLR

* Separate signal amplifier system and individual LED light of each channel

􀁺 Neutrik standard power input connector is very useful for any rental and mobile shows.

* Multiple installation methods to meet variety places use purpose.

* Wide input stable electric power supply: AC88 ~ 256V

* Light weight

Technical Parameter

* DMX512/1990 Standard

* Input/output:

* Standard: XLR Pin3

* Option: XLR Pin5 up to order

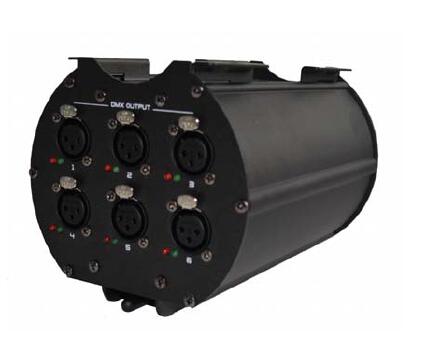

* Six-way DMX distributor with one input

* Input Voltage: AC88~256V 50/60Hz

* Dimension: 186mm ×128mm × 124mm

* Net Weight: 0.9 Kg

* Standard DMX512 signal; 2.4G wireless

* DMX512 receiver

* Communication distance: 300m (visible distance)
