Technical feature
DMX512/1990 Standard
12 channels switch output with triac
Switch output feature: DMX channel value
0-126=OFF, 127-255=ON
Silicon bidirectional thyristors and zero-crossing
triggering

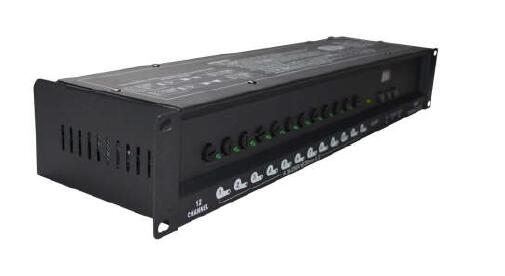

LED indicators for each channel
Over current protected with rapid fuse
Channel output: 5A per channel, 16A total
There are nine internal chase program and the
speed of these chase program can be selected

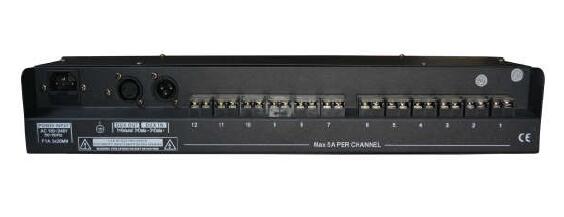

DMX input connector: XLR-D3M
DMX output connector: XLR-D3F
Power supply: AC 88~256V 50/60Hz
Dimension: 482mm×140mm×75mm
