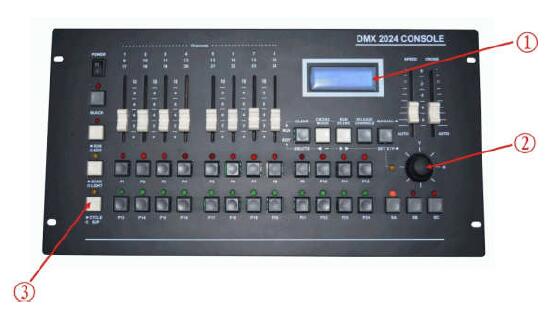

① when power off or disconnect electric suddenly. Console will auto run continue while power ON or connect to electric.
② Set X,Y to light joystick of single fixture
③ Select one or multi chases to run in cycle; Select multi chases to run at same time - SU
Technical Feature
* DMX512/1990 Standard 504 channels
* LCD display with backlight
* Up to 20 scanners may be connected with a maximum of 24 channels each 24 Dimmer channels
* 8 slider for manual control of channels
* Assignable joystick for ease of movement
* 24 chases run in circularly, Max 40 steps each chase
* Can run 8chases simultaneously
* 960 chase steps
* Range of cross time: 0s-25.5s
* Range of speed time: 0.1s-25.5s
* Each chase speed and cross time can be saved automatic
* 512K high capacity memory card
* The Data auto-saves

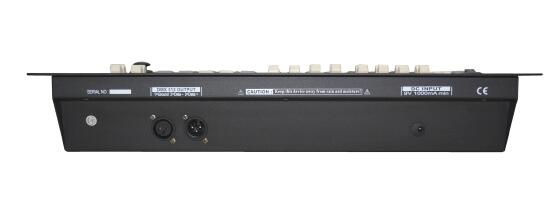

* DMX signal output connector: XLR-D3F
* Power supply: DC9V 1000mA
* Dimension: 482mm×250mm×85mm
* Net Weight: 3.8Kg
